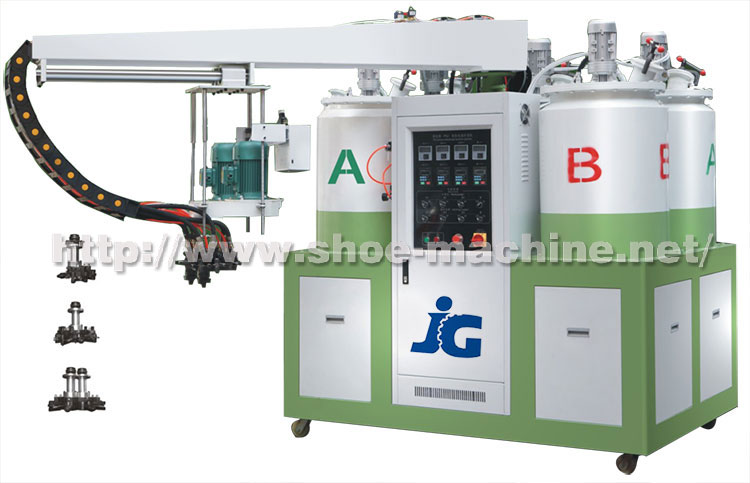

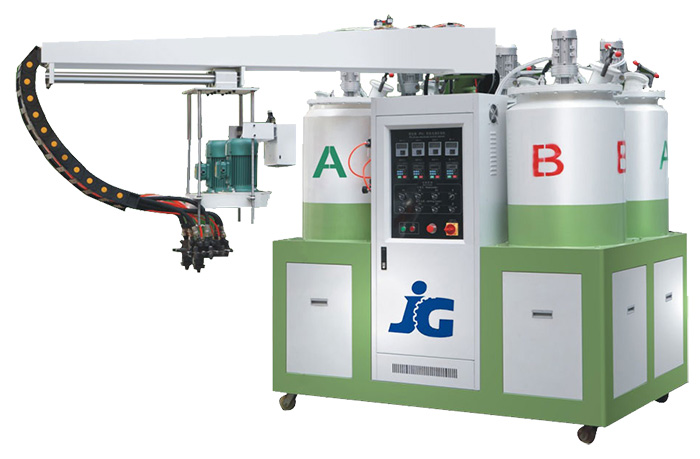

Our JG-806 PU pouring machine is product combined with optical, mechanical, electrical functions realizing intelligent digitization. Jg-806 PU pouring machine if four color and two density polyurethane foaming machine . Its main characteristics are as follows:
One, designs aspect in machinery structure:
1、 It adopts A1,A2,A3,A4 and b, five material jar structure forms, making an organic commixture of A1 and B, A2 and B, A3 and B as well As A4 and B. It produces various kinds of foaming monomer of one-density and one-color, as well as of transparent foaming monomer to make soles.
2、 According to different proportion of PU liquid material, the machine head adopts five sets on needle valve working dependently.
3、 This machine adopt inverted oil to cycle to head system, whose merit: Heat speed quickly, save an electricity
Two, in the field of autocontrol:
1、 Adopt a labor to charge machine for coming to structure the hardware platform, t design special use software, puts the complete machine autocontrol into practice; The man-machine developing by self handles
2、 An interface, has functions such as setting up the data, real time supervisory control, showing; The rotation rate measuring a pump adopt frequency conversion under the control of way.
3、 Whose merit is energy conservation, during the period of voltage is unsteady Make a rotation rate be is stability.
4、 Adopt special use Yu to owe equipment temperature, date collect the module the temperature controlling material, makes the temperature be in state never out of control.
Three, the parameter
|
pouring machine model
|
JG-806
|
|
Tank quantity
|
5
|
|
Tank capacity
|
250L
|
|
Pump quantity
|
5
|
|
Speed of pump(r/min)
|
0---280
|
|
Precision (%)
|
±0.5
|
|
Max rotating
Speed of injection screw
|
8600-10000
|
|
Clean the head
|
Automatic
|
|
Voltage
|
380V
|
|
power
|
20(kw)
|
|
output
|
70(k/s)
|
|
Clean quantity
|
9000(r/min)>160
|
|
Clean the superfluous material
|
<25g
|
|
Product characteristics
|
Three color three density Produce PU and transparent PU soles at the same time
|
The whole producing line include one main machine, one 60 station convey, one oven
1.main machine
2.60 station producing line(conveyor)
3.The raw material oven
Can produce safty shoes, leathe shoes, sandal shoes etc.
