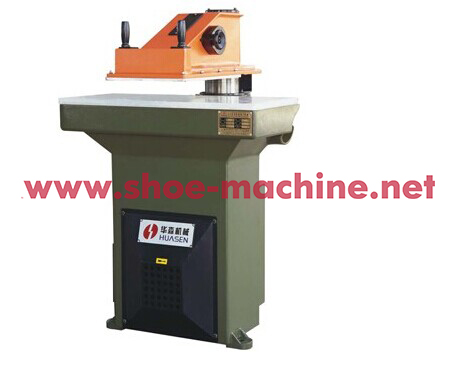

USE AND CHARACTERISTICS
1. The machine is applicable to cutting of various nonmetal materials by die cutter.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of die cutter is changed.
3. High speed and low energy consumption. With only power of 0.75KW, it can output the cutting force of 20T.
4. To meet the need of frequent replacement of die cutters of different sizes, another
type of machine that can timely output three kinds of cutting force is available for selection.
TECHNICAL SPECIFICATION
|
Model
|
HSA/B-200
|
HSA/B-270
|
HSA/B-270K
|
HSA/B-270L
|
|
Maximum cutting force
|
200KN
|
270KN
|
270KN
|
270KN
|
|
Working area(mm)
|
900*430
|
1000*500
|
1000*500
|
1000*500
|
|
Swing arm width (mm)
|
370
|
370
|
500
|
610
|
|
Cutting stroke(mm)
|
90
|
90
|
90
|
90
|
|
Motor power
|
0.75KW
|
1.1KW
|
1.1KW
|
1.1KW
|
|
Machine’s dimensions(mm)
|
900*820*1400
|
1000*1020*1410
|
1000*1020*1410
|
1000*1020*1410
|
|
Packing size(mm)
|
1050*1000*1500
|
1150*1200*1500
|
1150*1200*1500
|
1150*1200*1500
|
|
N.W(with oil)
|
650kg
|
960kg
|
1050kg
|
1200kg
|
|
G.W
|
740kg
|
1120kg
|
1210kg
|
1360kg
|
