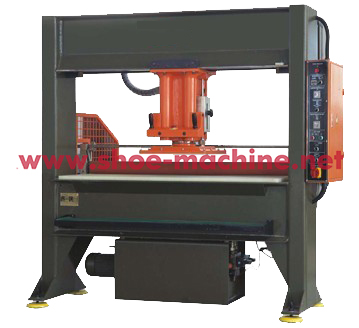

1. Gantry frame structure made of profile steel is adopted, with high intensity and
without deformation.
2. The cutting head can automatically move horizontally, with excellent operating
visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil
consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and
enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize
flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.
|
Model
|
HSD/A250
|
HSD/A250A
|
HSD/A250B
|
HSD/A500
|
HSD/A500A
|
HSD/A500B
|
|
Maximum cutting force
|
250KN
|
250KN
|
250KN
|
500KN
|
500KN
|
500KN
|
|
Working table(mm)
|
1600*500
|
1800*500
|
2000*500
|
1600*500
|
1800*500
|
2000*500
|
|
Travel head size（mm）
|
500*500
|
500*500
|
500*500
|
550*550
|
550*550
|
550*550
|
|
Adjustable stroke (mm)
|
5-150
|
5-150
|
5-150
|
5-150
|
5-150
|
5-150
|
|
Motor power
|
2.2KW
|
2.2KW
|
2.2KW
|
4.0KW
|
4.0KW
|
4.0KW
|
|
Machine dimensions(mm)
|
2200*720*2000
|
2400*720*2000
|
2600*720*2000
|
2200*720*2000
|
2400*720*2000
|
2600*720*2000
|
|
G.W
|
1600kg
|
2100kg
|
3000kg
|
3000kg
|
3800kg
|
5000kg
|
