plastic sole injection molding machine
| Product details:
|

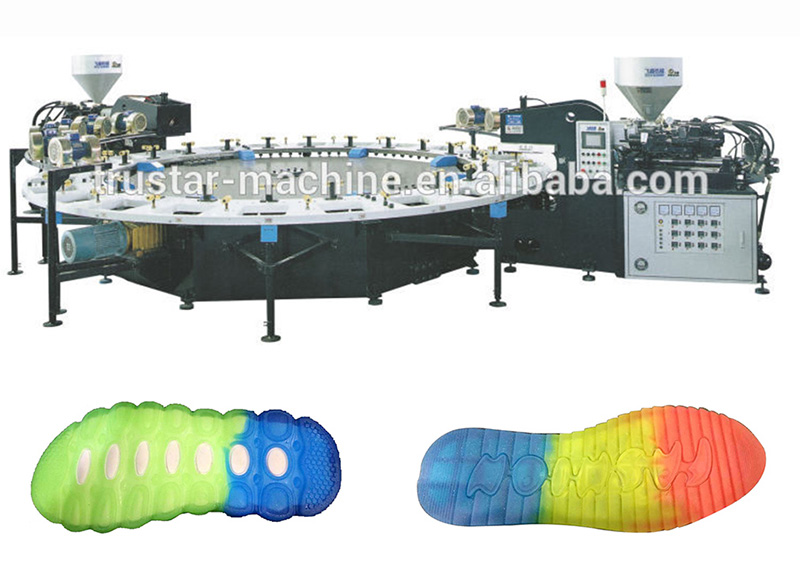

TWO COLOR PLASTIC SOLE INJECTION MOLDING MACHINE
Use and character:
1.PLC program control of industrial man-machine interface\Display of tactile screen\Quick speed\Prece measurement\Full automatic operation
2.The working statement is monitored all the while, for person to adjust the parameters easily if necessary.
3.It is applied to produce one-color\two-color soles.
4.The machine has economy design, taking up only small space, saving energy, asking for fewer operators.
|
|
g
|
Mainframe 420
Auxiliary 220*2
|
|
Heating power
|
kw
|
18
|
|
Temperature control
|
Point
|
4
|
|
Rotating speed of screw
|
r.p.m
|
0-180
|
|
Injection stroke
|
mm
|
150
|
|
Power of oil pump
|
kw
|
11+15
|
|
Clamping force
|
kn
|
500
|
|
Number of working station(max)
|
station
|
20
|
|
Mould size(max)
|
mm
|
320*350*110
|
|
Machine size
|
mm
|
7400*4700*1800
|
|
Net weight
|
Kg
|
9500
|
|
Gross weight
|
kg
|
10000
|
|
