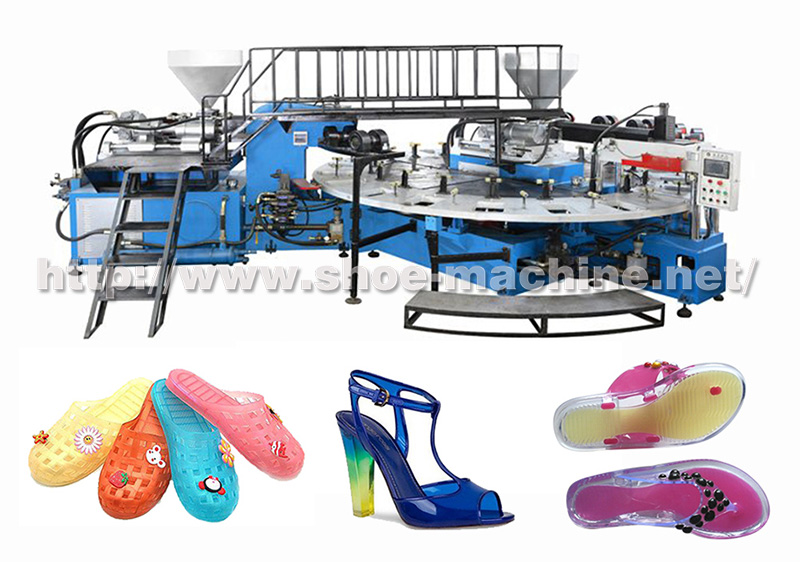

Two/ Three Color Plastic Injection Machine is specially designed for producing all kinds of one, two or three-color travelling soles, casual soles, sandal soles or slipper soles and slipper soles nade of TPR, PVC etc.
Features:
It is controlled by PVC. It is hydraulic driven, auto cycle with high yield. It is installed with a GP as human-machine cooperates to operate easily.
It has perfect cycling system, short circuit protection and self-diagnose function.
Each oil system of the machine is controlled independently.
The screw transmits hydraulically with no noise.
It is east to operate, convenient to maintain.
Main technical data
|
Item
|
item
|
2DSZ-20 YA3
|
2DSZ-24 YA3
|
|
Number of stations
|
pcs
|
20
|
24
|
|
Screw revolution
|
rpm
|
0-130
|
0-130
|
|
Screw diameter
|
mm
|
70 70
|
70 70 70
|
|
Max injection volume
|
cm3
|
770 770
|
770 770 770
|
|
Injection pressure
|
Mpa
|
40 40
|
40 40 40
|
|
Mold diameter
|
Mm(L*W*H)
|
440*230*200
|
440*230*200
|
|
Total power
|
KW
|
44
|
66
|
|
Overall dimension
|
Mm(L*W*H)
|
7290*6170*2275
|
10050*7525*2275
|
|
Total weight
|
kg
|
16000
|
22000
|
|
