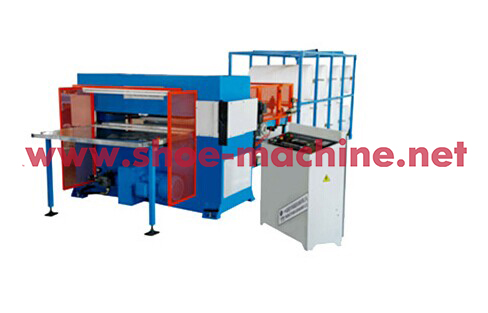

Stepping Type Precise Four-column Cutting Machine

Stepping Type Precise Four-column Cutting Machine
Print this page
Bookmark this page
E-mail me
Live Messenger
Yahoo Messenger
Skype Me
PDF Download

Product details:
Characteistics:
1. The machine is applicable to continuous and large-batch cutting of nonmetal materials such as sponge, pearl cotton and EVA etc. in various factories by die cutter.
2.The conveying part adopts PLC control. The materials are clamped by the cylinder and are driven by the servo motor into the cutting area of the machine. After die cutting, the finished products are discharged. The feeding length can be adjusted conveniently through touch screen.
3. The main machine adopts four-column guiding, double-crank balancing and hydraulic driving, which can guarantee the speed and accuracy of die cutting of machine. All movable connecting parts are equipped with central oil supply automatic lubricating device, which reduces the abrasion to the minimum extent.
4. The inlet and outlet of cutting area of the machine are installed with safety protection devices, which can guarantee personal safety of operators.
5.The die cutter is fastened by pneumatic clamp device so as to make the replacement of die cutter convenient and prompt.
6. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
7. Products of special specifications can be customized.
TECHNICAL SPECIFICATION:



Maximum cutting force

1000KN

1500KN

2000KN

Tension distancemm

50-200

50-200

50-200

Cutting area(mm)

1600*900

1600*1000

1600*1000

1400*900

1400*1000

1400*1000

Motor power

7.5KW

11KW

11KW

G.W

8000kg

12000kg

14000kg

7800kg

11500kg

13500kg
