Product Description
Productd Overviews
Features

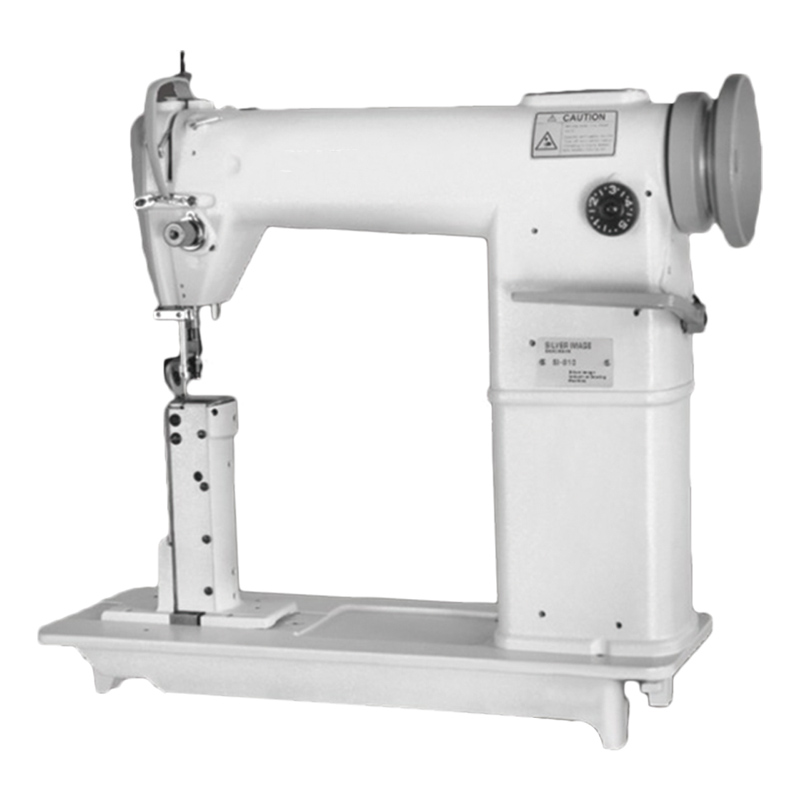

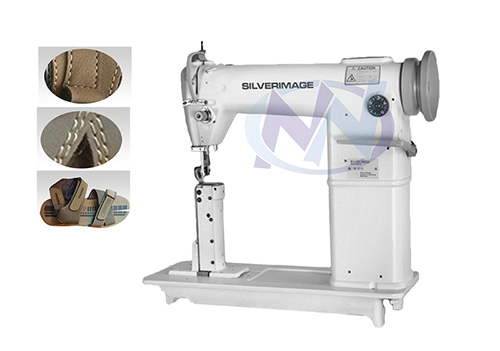

1.Post-bed design,suitable shoes,handbags,leather products,etc.
2.The full-rotary horizontal-shaft hook and the slide-type thread take-up lever, a well-tensed and beautifulfinished seam is achieved with consistency.

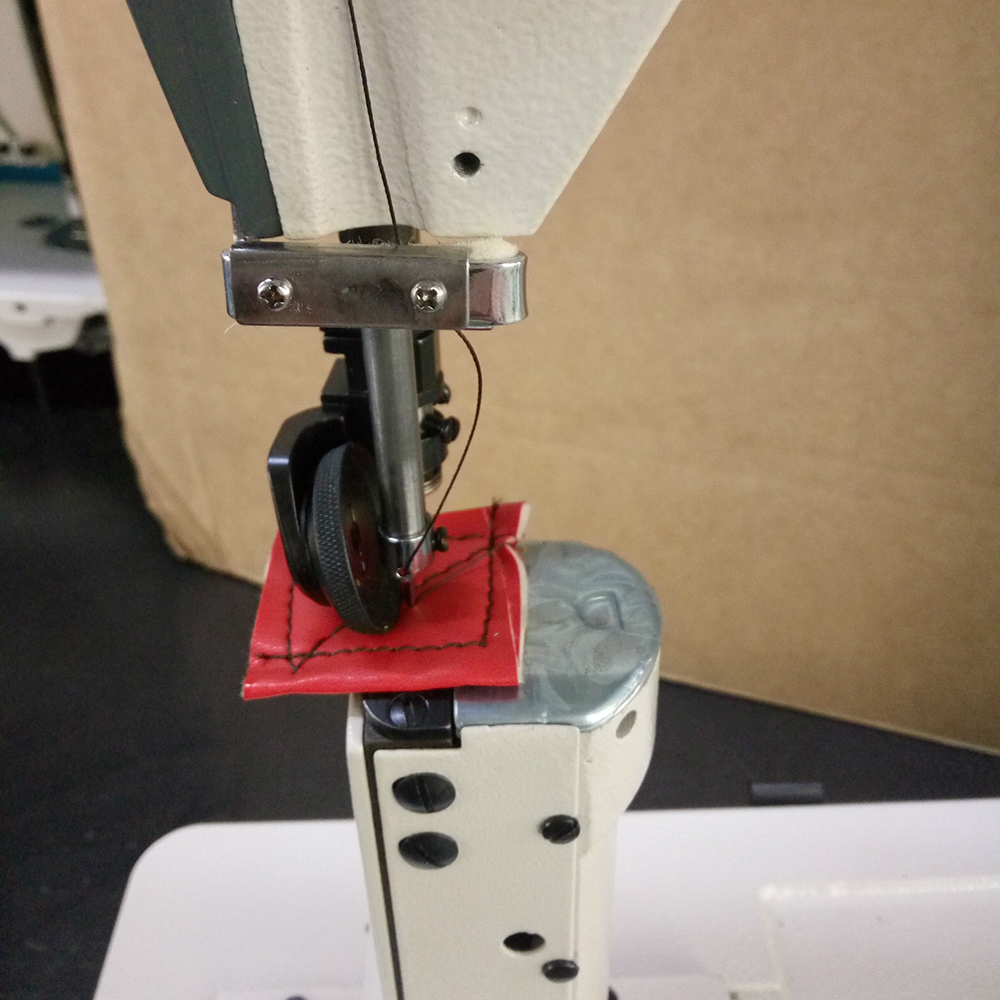

3.Free feeding is possible with the roller presser.
4.The roller presser design is suitable to sew the abnormal material,such as various leather,sponge-within leather and light materials,which can keep the seam smooth and even, without crease.
5.Reverse stitching is available with an easy lever operation.
6.Easy to adjust the size of seam.
7.Changed roller presser foot to flat presser foot gauge set,so that can be suitable for hats and wigs sewing.
8.Double needles model of stable double row sewing have been realized, it's up to 12.7mm in accordance with various size of gauge set.
Technical Parameter:
Main technical parameters:
Main technical parameters:
| Sewing Material |
Light
|
Medium |
medium |
Heavy |
|
Stitch Length
(max)
|
4mm
|
5mm |
4mm |
6mm |
|
S.P.M
|
1800
|
1800-2000 |
1800 |
1800 |
|
Needle Bar Stroke(mm)
|
*
|
* |
* |
* |
|
Needle
|
DB*5
#9-#16
|
DB*5
#11-#16
|
DB*5
#12-#18
|
DB*5
#18-#22
|

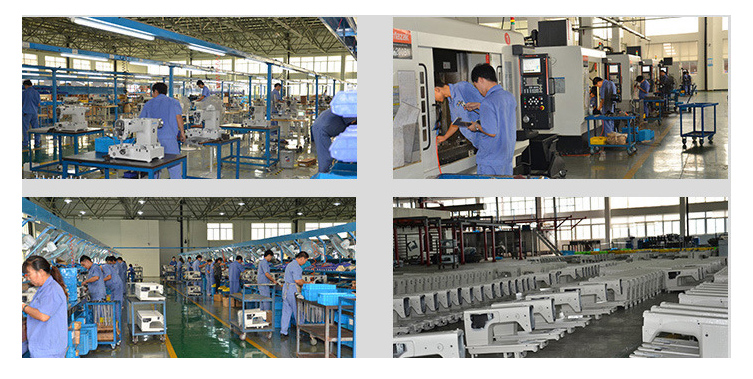

The production workshop
